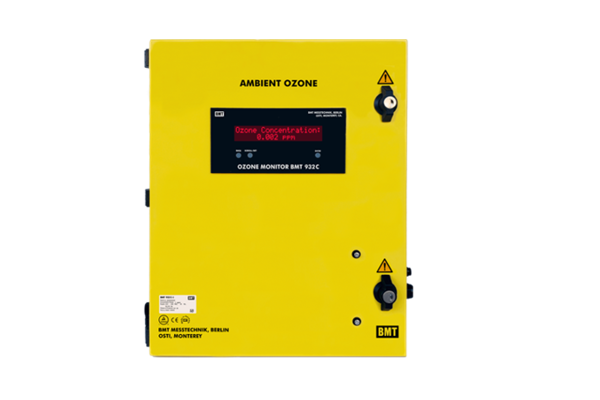

The scrubber is the most important element of any photometric ozone monitor. The OZONE MONITOR BMT 932C has two precisely ozone selective scrubbers: one Utility Scrubber, and one Reserve Scrubber. Additionally it has a built-in Ozone Generator which periodically tests the ability of the Utility Scrubber to remove all of the ozone from the sample. When the Utility Scrubber fails this test the Reserve Scrubber takes over. Now the Scrubber Warning is activated and the Scrubber Test is verifying the Reserve Scrubber.
The sample gas flow rate is maintained constant by a pump which is automatically controlled by a built-in electronic flowmeter.
The BMT 932C can be configured via the front panel alphanumeric display or on a Windows PC using the provided software.
A complete error and event log, with timestamps from the internal clock, can be printed out for trouble shooting.
- Monitoring of ozone in ambient air
- TLV monitoring (Threshold Limit Value)
- Ambient monitoring in ozone plants
- Vent-Gas monitoring
- Dual beam UV photometer Warranty 3 years
- Long-life mercury lamp (5 years warranty)
- High accuracy, error less than 1% Resolution 0.001 ppmv
- Pressure and temperature compensated
- Ranges from 1 to 250 ppmv
- 19'' rack mount, or cabinet versions
- Traceable to international standard (NIST)
- 1, 3, 6 channel versions
- Two individual threshold alarm levels for each channel, three configurable EMO outputs
- Cycle time 20 s per channel
- Two scrubbers (utility + reserve)
- Ozone generator for automatically testing the utility scrubber every 24 hours
- Reserve scrubber automatically replaces the utility scrubber when it is faulty
- Sample gas flow 1 l/min, auto controlled via an electronic flow meter
measurement principle Dual-beam UV photometer (254 nm)
UV lamp Low pressure mercury lamp, long life design,burnt-in for 300 h
display Alphanumeric LCD 2x20 char.
concentration ranges 1 ppmv (1.000 ppmv), 2.000, 5.000, 10.000, 20.00, 100.0 and 250.0 ppmv
Noise ±0.001 ppmv
Min. detectable Conc. 0.002 ppmv
Accuracy max. error, traceable to NIST, is the sum: 0.8% of measurement + 0.2% of scale
response time 20 s (0 - 95 %
Temperature and pressure Compensation Standard
Flow rate 1 l/min, automatically controlled by an electronic flow meter
Sample ports 1, 3 or 6 (please specify), automatic and manual selection of sample port
Scrubber life > 8 years (safety monitor operation)
Threshold alarms Two individual alarm thresholds for each channel, 3 EMO outputs controlled by any combination of alarms
Error relay Indicating any instrument failure, including Lamp low (easy lamp replacement) Low flow Scrubber failure (tested for every 24 h, reserve scrubber takes over automatically) Warmup

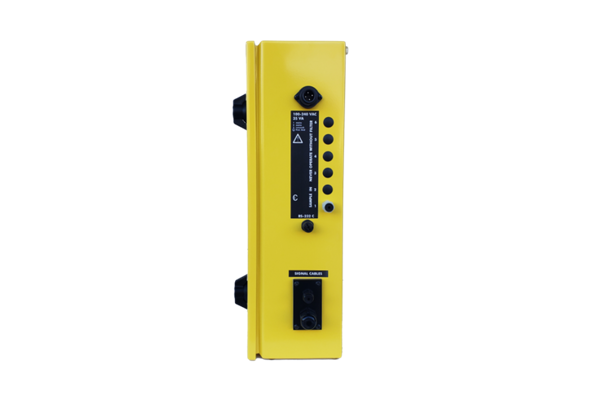

Gas ports Compression type for ¼" PFA/FEP/PTFE tubing (Cabinet: ¼" One-Touch Fitting) Safety catalyst for off gas included
Signal outputs Concentration 4-20 mA (isolated, active) Concentration 0-1 V, 0-10 V (isolated) Sample port identification by binary output Option: 932-RELAY with contacts identifying each port plus its low/high alarm, access by 50-pole D-Sub connector
Control output Lamp low (relay contact, 30 V, 1 A)
Digital interface RS-232, isolated, showing concentration and error messages. Link Mode commands allow full control from Windows PC or PLC.
Accessories kit One filter holder & one mounting fitting for
(included) filter holder per sample port, 200 filter inserts
Warmup time 7 min. max., 4 min. typical
Power Universal line voltage: 100 - 240 VAC, 35 VA, 50/60 Hz optional: 18-36 VDC, 25W (19” rack mount)
Ambient temperature 0 - 45°C (non-condensing)
early warnings Lamp Low Warning, Cuvette Dirty Warning

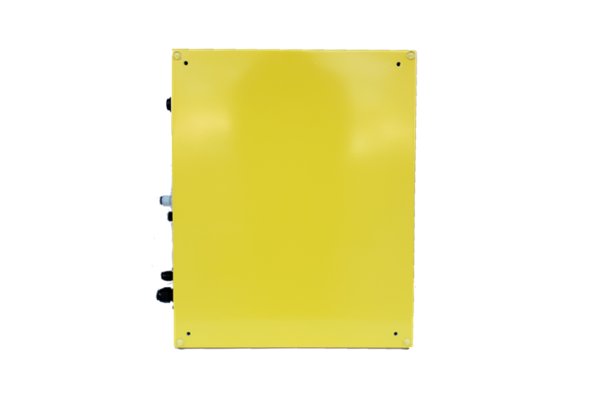

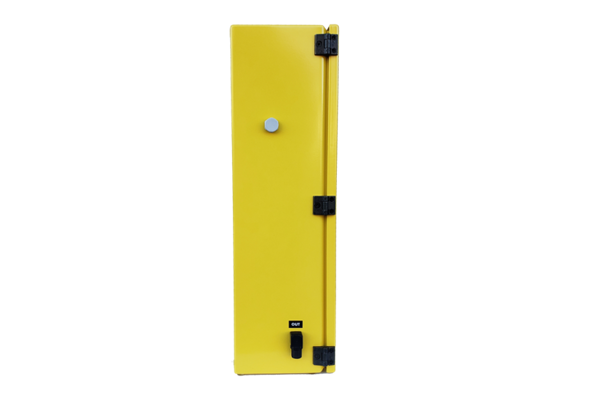

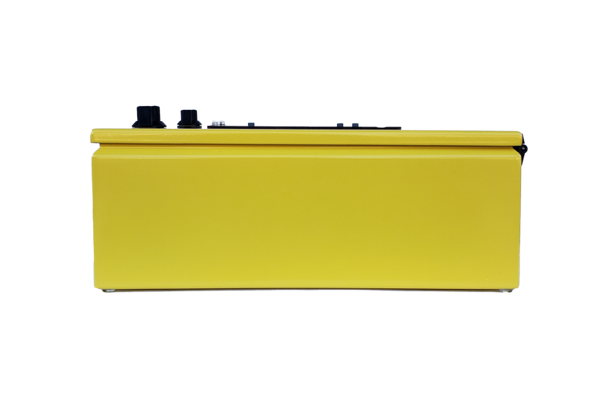

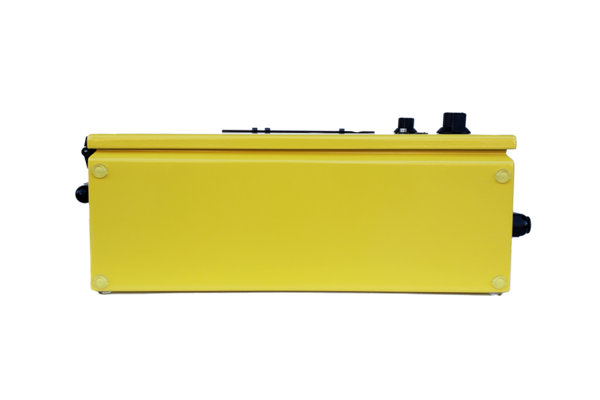

Cabinet version IP65, NEMA 4X
Dimensions (HxD) 132x300 mm (19 rack mount)
(WxHxD) 357x440x133 mm (wall mount BMT 932 C)
weight 9 kg (19" rack mount) 7 kg (wall mount BMT 932 C)
compliance CE-marked (EMC & safety), cTUVus NRTL-listed, RoHS
