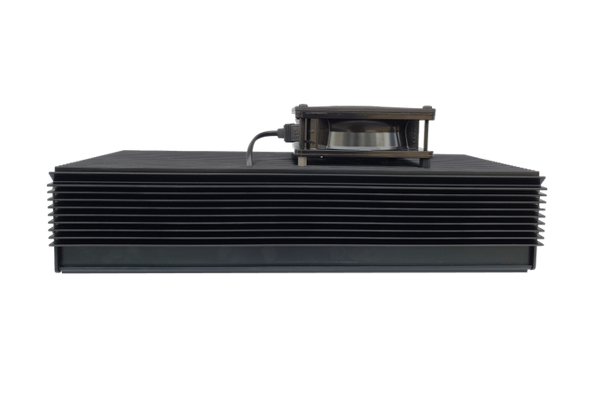

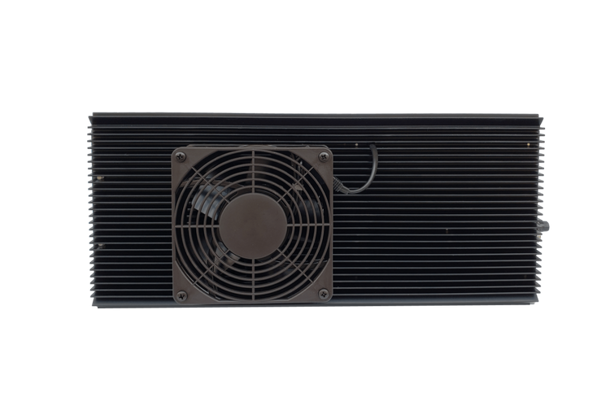

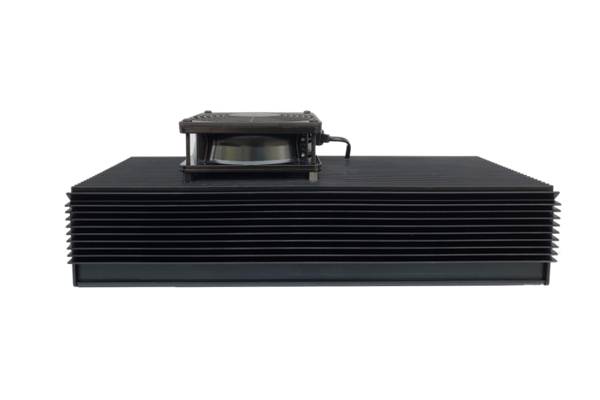

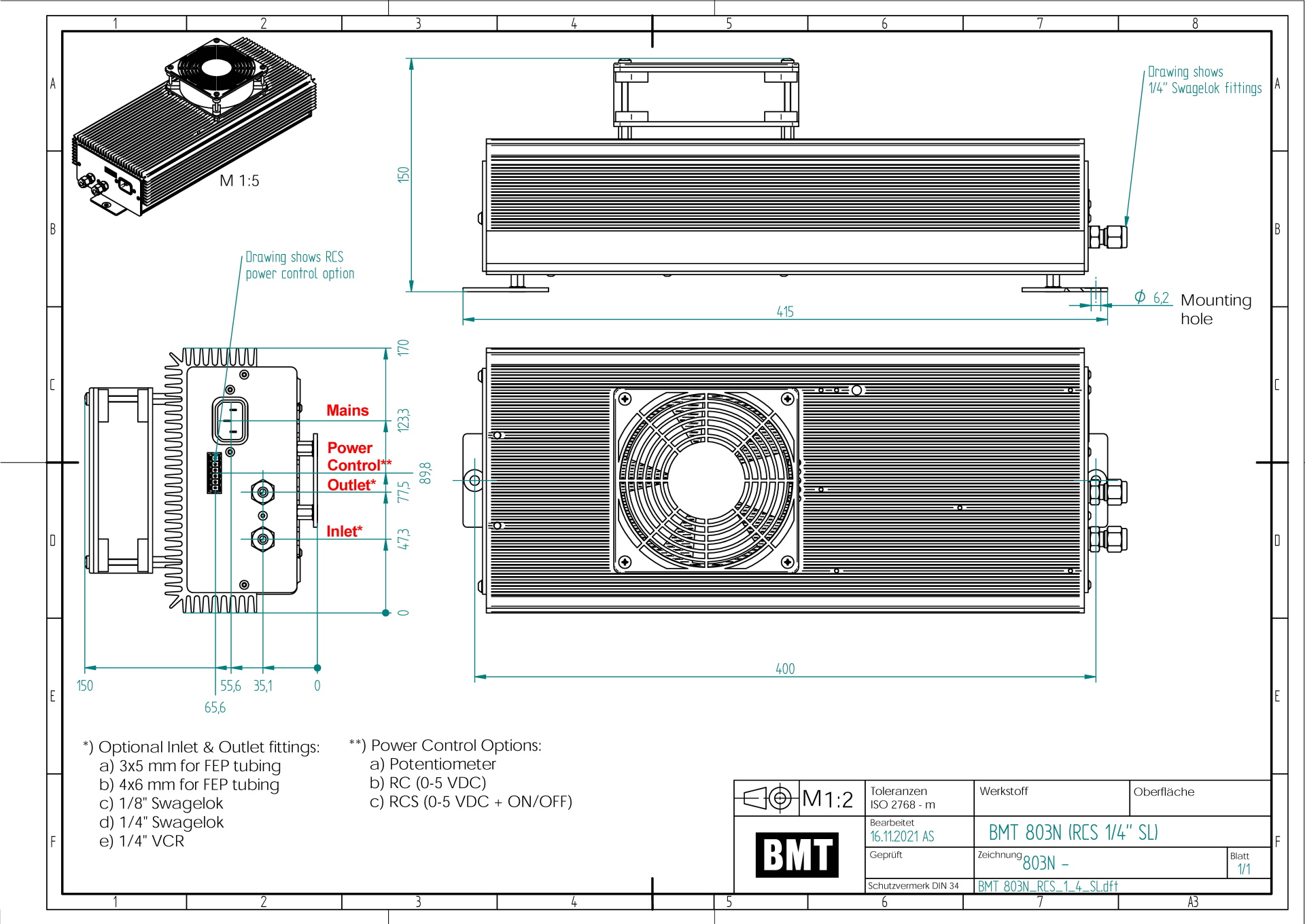

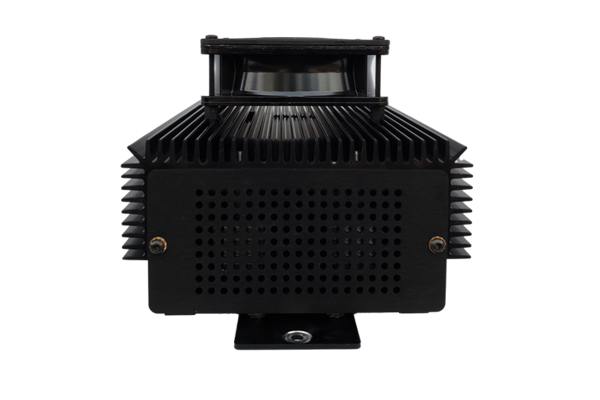

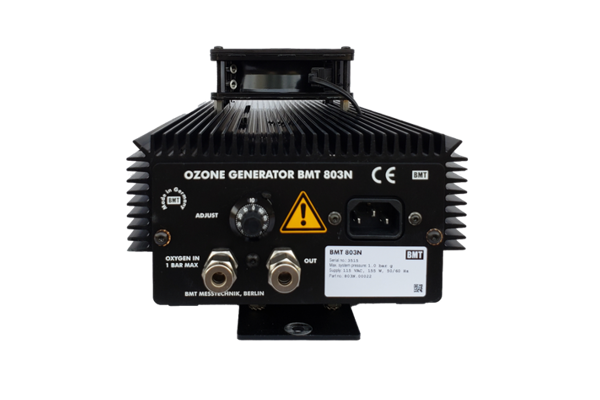

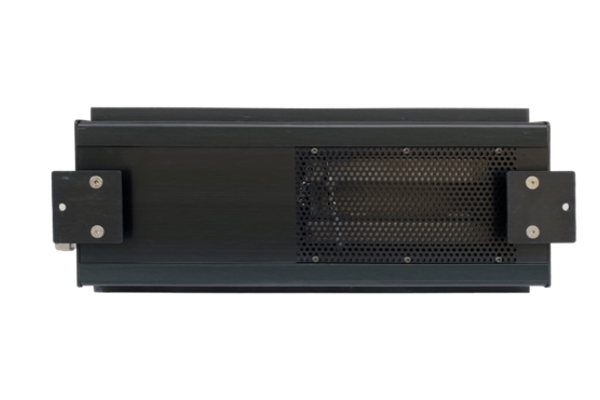

The enclosure of the instrument is an aluminium extrusion profile which acts as a large heat sink. Additionally a fan is mounted externally which also helps in ventilating the internal. Dimensions of the generator are approx. 391 x 170 x 151 mm, not much bigger than a shoe box. The weight is approx. 5.6 kg. Input voltage is 230 VAC, or 115 VAC. Inlet and outlet fittings are for 3 x 5 mm (or 1/8'' x 3/16'') PTFE tubing. Maximal power consumption is about 155 W, including the 20 W for the fan.
The operating pressure must not exceed 1 bar gauge. For higher pressure applications the model BMT 803N HP is available which is optimised for operation at 2 bar gauge. Between 0.5 and 1.0 bar gauge (1.5 to 2.0 bar abs), 100 g/Nm3 and 20°C ambient temperature, the ozone production is 8 g/h or more. The maximally obtainable ozone concentration exceeds 250 g/Nm3.
The ozone production decreases with increasing ambient air temperature by approx. 0.8% per degree centigrade.
Click For Detail View
Measurement of ozone content (e.g. with our OZONE ANALYZER BMT 964) can be made with the total flow passing the analyser (up to about 1 Nl/min), or with the analyser in a bypass configuration (higher flow). Connecting tubing should be PTFE, even on the oxygen side.
We are ready to assist you in planning the installation of the OZONE GENERATOR BMT 803N.

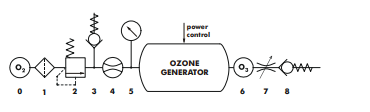

0 oxygen source (5 bar max.)
1 filter (optional)
2 pressure regulator
3 pressure relief valve (safety valve)
4 flow meter (oxygen mass flow)
5 pressure gauge
6 ozone analyzer (flow < 1 l/min)
7 throttle valve
A broad spectrum of ozone measurement products and field
proven accessories is also available, e.g.:
- OZONE GENERATOR BMT 803N (8 g/h)
- OZONE ANALYZER BMT 964 for ozone measurement
- OZONE-IN-WATER SENSOR BMT 964 AQ
- OZONE MONITOR BMT 930 for TLV monitoring
- Ozone generation in the laboratory
- Pilot plants for ozone processes
- Small ozone systems
- Sterilisation of medical instruments
- Deactivation of bacteria and viruses in water
- Bottled water pre-treatment
- Medical ozone application
- Pharmaceutical production
- Semiconductor ozone processes
- Ozone generation in a box not much bigger than a shoe box
- Air cooled
- Ozone production 8 g/h (at 100 g/Nm3 , 20°C)
- Highest O3 concentration exceeding 250 g/Nm3
- Life expectancy of many years
- Power control via potentiometer, or by a control voltage of 0 - 5 VDC (optional)
- Control range 1:7
- Rugged aluminium enclosure
feed gas oxygen
flow rate 0.1 to 1.5 l/min
ozone production 4 g/h (at 100g/Nm3/ 20°C)
max. O3 concentration > 250 g/Nm3
max. pressure 1 bar gauge (2 bar abs)
cooling ambient air
life expectancy of fans 40,000 hours
ambient temperature 0 to +40°C (non-condensing)
temperature effect output decreasing by approx. 1% / K
materials in contact Al2O3 ceramic and 35μm anodised aluminium,
with ozone SS, PTFE
gas ports or PTFE tubing 3 x 5 mm, or 1/8" x 3/16"
1/4'' Swagelok on request
1/4'' VCR on request (both inlet & outlet with
male body)
power 230 VAC, 50/60 Hz, 80 W
or 115 VAC (please specify)

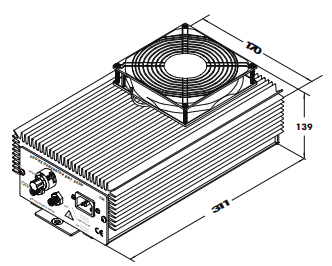

dimensions (W x H x D) 311 x 170 x 139 mm
weight 4.7 kg

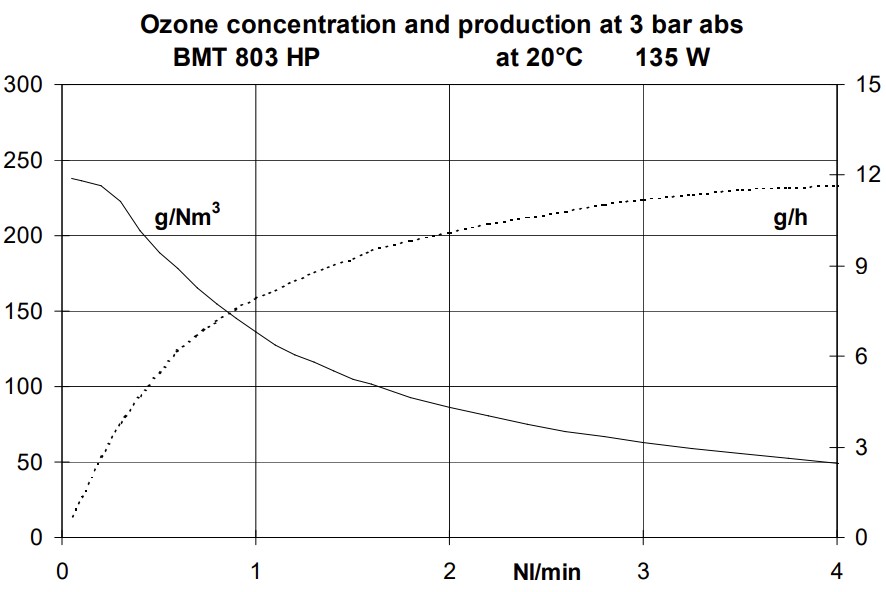

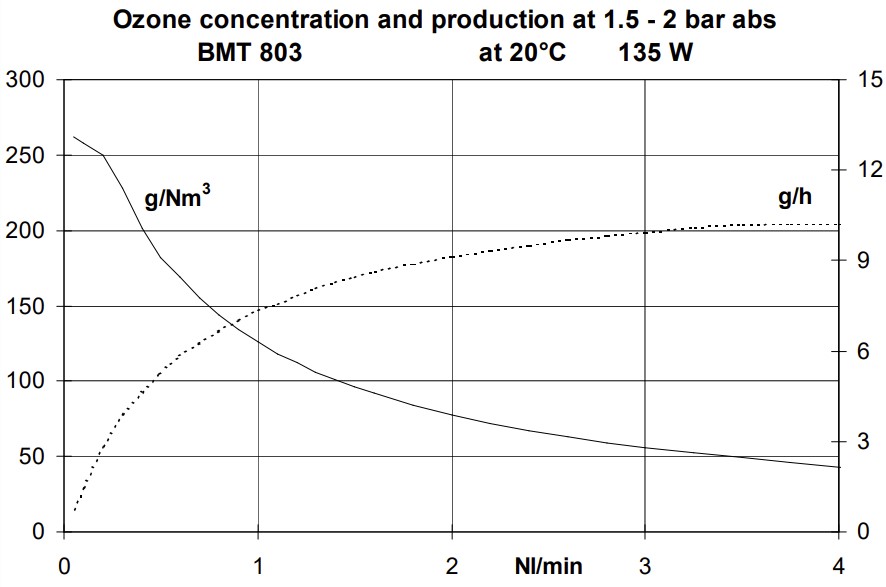

Typical Performance Curves:
