Ozone Generator BMT 802N, 4 g/h
802N Right
Ozone Generator BMT 802N, 4 g/h
802N Back
Ozone Generator BMT 802N, 4 g/h
802N Left
Ozone Generator BMT 802N, 4 g/h
802N Top
Ozone Generator BMT 802N, 4 g/h
802N Bottom
Ozone Generator BMT 802N, 4 g/h
802N Front
802N Front
802N Right
802N Right
802N Back
802N Back
802N Left
802N Left
802N Top
802N Top
802N Bottom
802N Bottom

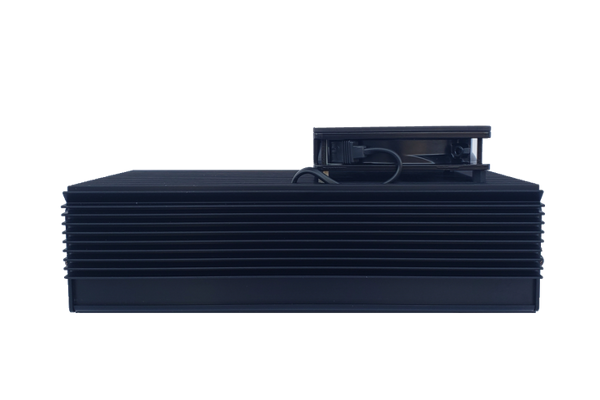

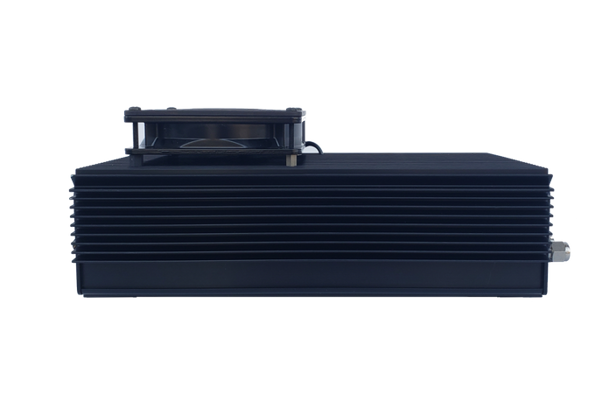

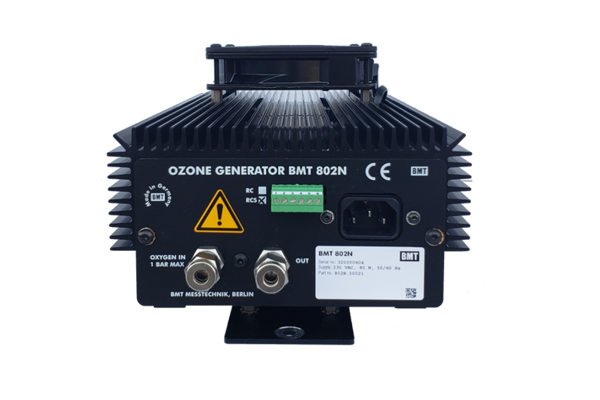

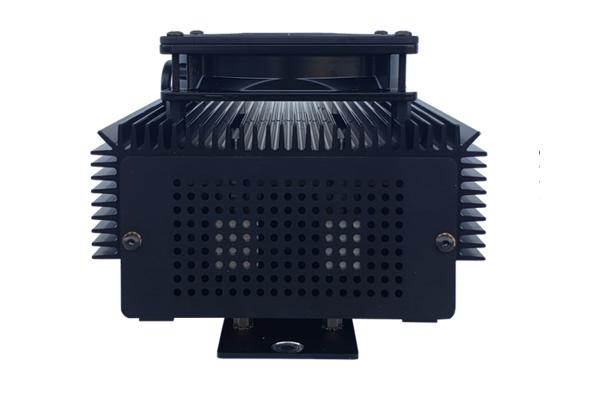

The OZONE GENERATOR BMT 802N is a small air-cooled ozone generator for oxygen as the feed gas. The dielectric is plain ceramic. The electrodes are tungsten.

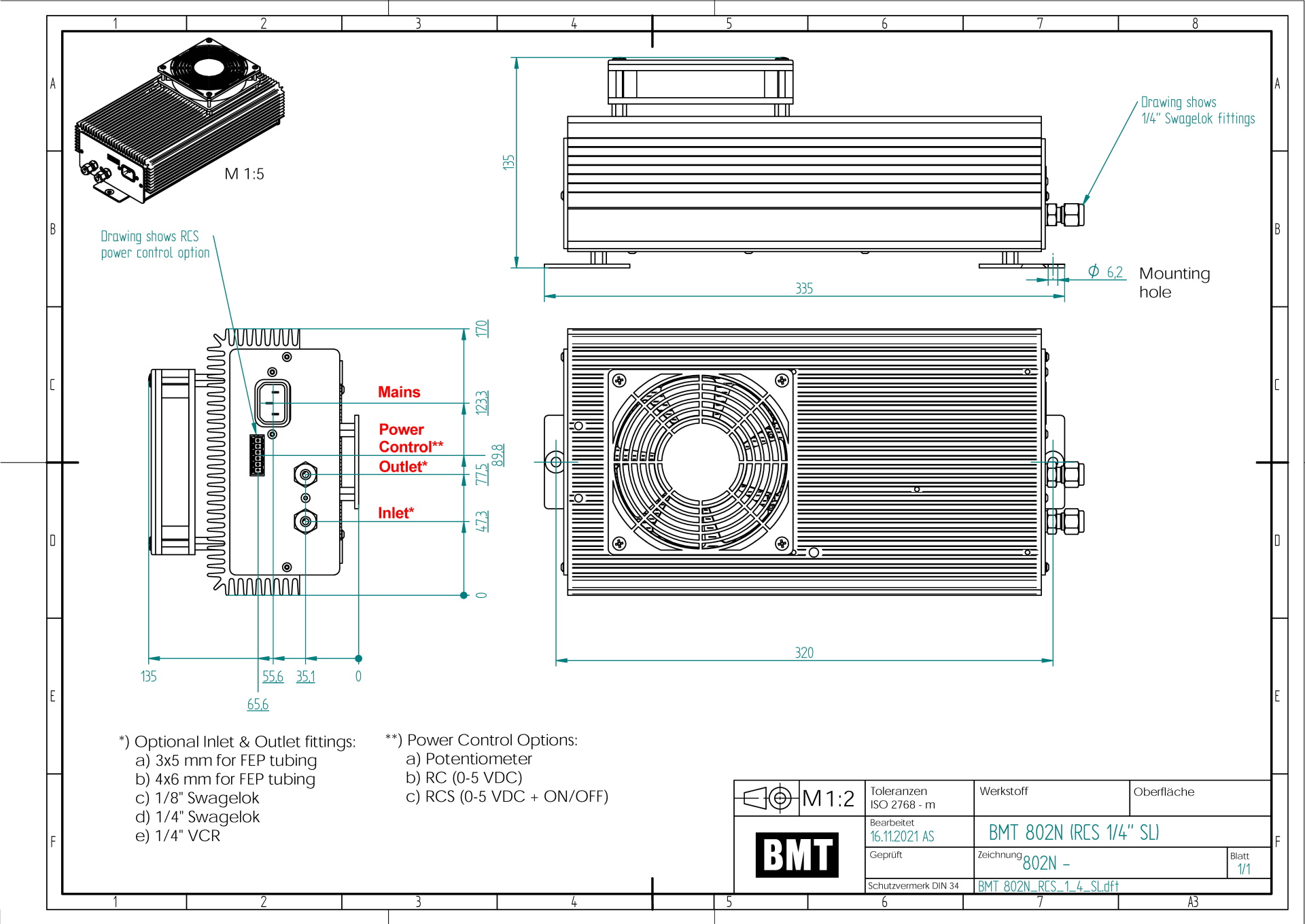

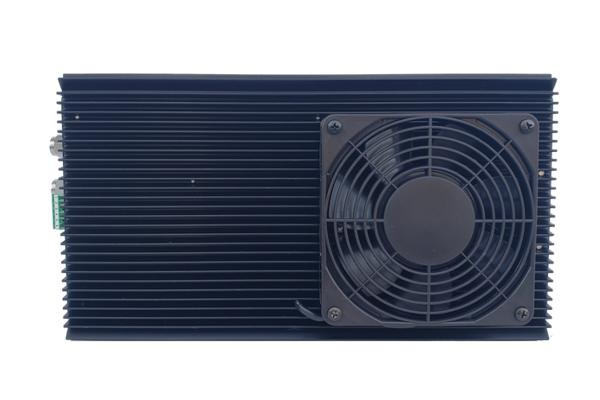

The enclosure of the instrument is an aluminium extrusion profile which acts as a large heat sink. Additionally a fan is mounted externally which also helps in ventilating the internal. Dimensions of the generator are approx. 311 x 170 x 139 mm, not much bigger than a shoe box. The weight is approx. 4.7 kg. Input voltage is 230 VAC, or 115 VAC. Inlet and outlet fittings are for 3 x 5 mm (or 1/8'' x 3/16'') PTFE tubing.

Maximal power consumption is about 80 W, including the 15 W for the fan.

The operating pressure must not exceed 1 bar gauge. Between 0.5 and 1.0 bar gauge (1.5 to 2.0 bar abs), 100 g/Nm3 and 20°C ambient temperature, the ozone production is 4 g/h or more. The maximally obtainable ozone concentration exceeds 250 g/Nm3.

The ozone production decreases with increasing ambient air temperature by approx. 1% per degree centigrade.

Click For Detail View

The OZONE GENERATOR BMT 802N is a building block. We recommend installation according to the schematic shown below. The generator should be operated at constant pressure, and the flow be adjusted by a throttle valve at the outlet. The pressure relief valve (3) is important for protection from overpressure when the outlet throttle is closed. Flow should be measured on the oxygen side. The filter (1) is important namely for oxygen coming from a PSA and/or when a thermal mass flow meter is used for flow measurement (4).

Measurement of ozone content (e.g. with our OZONE ANALYZER BMT 964) can be made with the total flow passing the analyser. Connecting tubing should be PTFE, even on the oxygen side.

We are ready to assist you in planning the installation of the OZONE GENERATOR BMT 802N.

0 oxygen source (5 bar max.)
1 filter (optional)
2 pressure regulator
3 pressure relief valve (safety valve)
4 flow meter (oxygen mass flow)
5 pressure gauge
6 ozone analyzer (flow < 1 l/min)
7 throttle valve

A broad spectrum of ozone measurement products and field
proven accessories is also available, e.g.:

  • OZONE GENERATOR BMT 802N (8 g/h)
  • OZONE ANALYZER BMT 964 for ozone measurement
  • OZONE-IN-WATER SENSOR BMT 964 AQ
  • OZONE MONITOR BMT 930 for TLV monitoring
  • Ozone generation in the laboratory
  • Pilot plants for ozone processes
  • Small ozone systems
  • Sterilisation of medical instruments
  • Deactivation of bacteria and viruses in water
  • Bottled water pre-treatment
  • Medical ozone application
  • Pharmaceutical production
  • Semiconductor ozone processes
  • Ozone generation in a box not much bigger than a shoe box
  • Air cooled
  • Ozone production 4 g/h (at 100 g/Nm3 , 20°C)
  • Highest O3 concentration exceeding 250 g/Nm3
  •  Life expectancy of many years
  • Power control via potentiometer, or by a control
    voltage of 0 - 5 VDC (optional)
  • Control range 1:7
  •  Rugged aluminium enclosure

feed gas  oxygen

flow rate   0.1 to 1.5 l/min

ozone production  4 g/h (at 100g/Nm3/ 20°C)

max. O3 concentration > 250 g/Nm3

max. pressure 1 bar gauge (2 bar abs)

cooling   ambient air

life expectancy of fans  40,000 hours

ambient temperature  0 to +40°C (non-condensing)

temperature effect  output decreasing by approx. 1% / K

materials in contact  Al2O3 ceramic and 35μm anodised aluminium,

with ozone SS, PTFE

gas ports  or PTFE tubing 3 x 5 mm, or 1/8" x 3/16"
                  1/4'' Swagelok on request
                  1/4'' VCR on request (both inlet & outlet with
                   male body)

power  230 VAC, 50/60 Hz, 80 W
             or 115 VAC (please specify)

dimensions (W x H x D)  311 x 170 x 139 mm

weight  4.7 kg

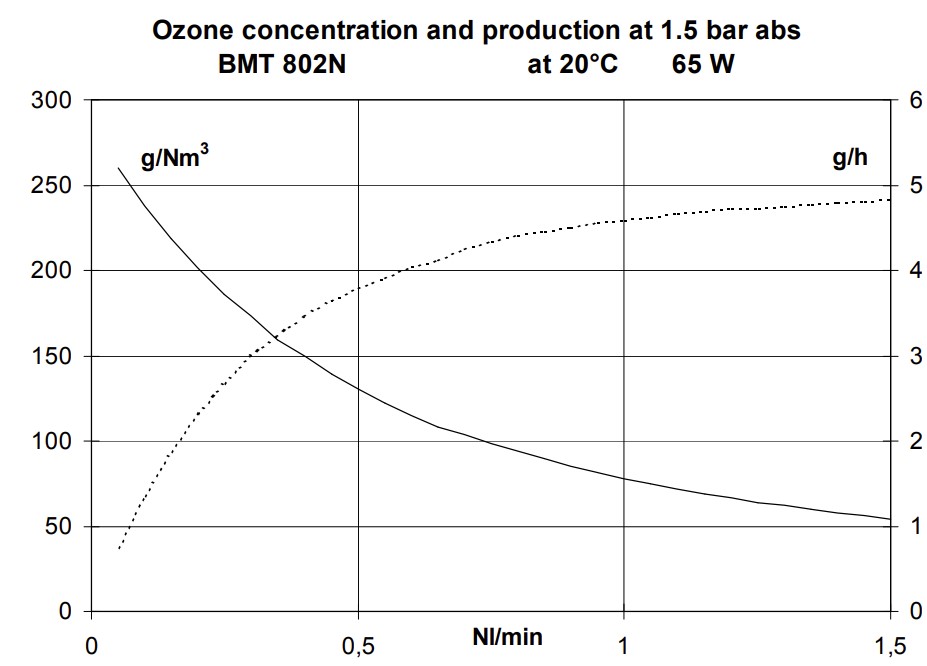

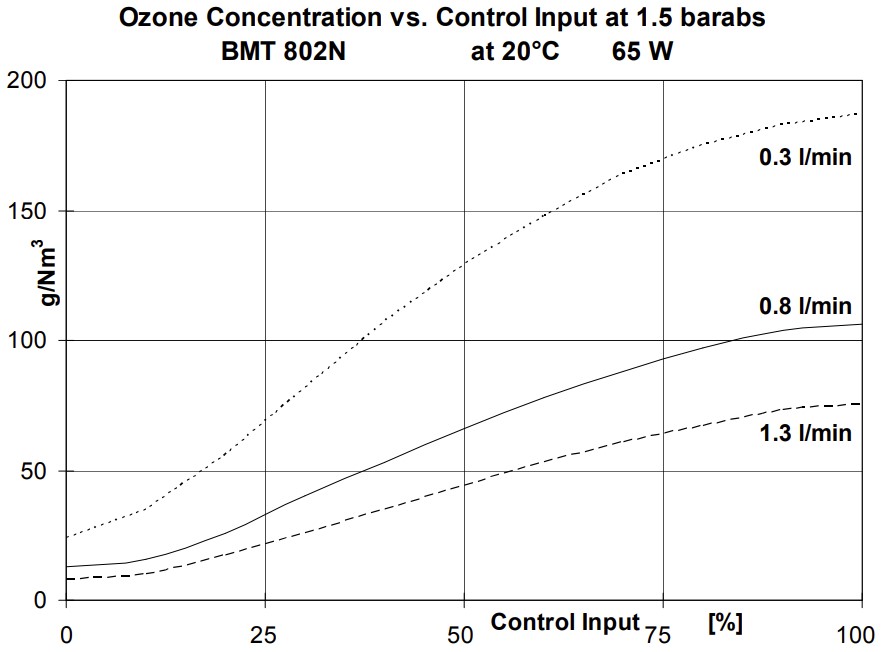

Typical Performance Curves:

Click For Detail View

Click For Detail View

Click For Detail View
(SEE DOWNLOADS TAB TO DOWNLOAD)
