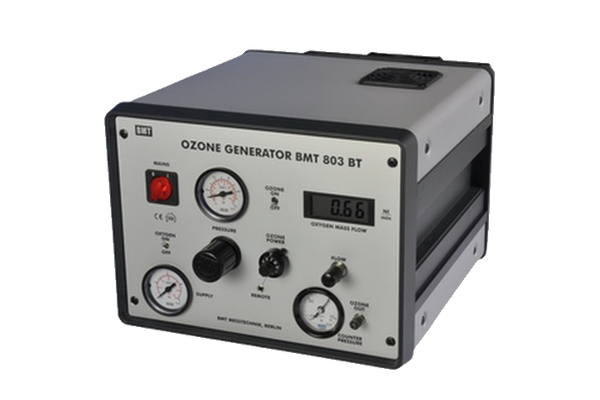

The OZONE GENERATOR BMT 803 BT (Bench Top) is a mall, air cooled ozone source for laboratory applications. Operation is from oxygen. The instrument contains every con- trols and displays necessary, and desirable, for operating the ozone generator, except of an ozone analyser. A special exter- nal ozone analyser BMT 964 can be connected to two sample gas fittings at the rear of the BMT 803 BT. This in-line ozone analyser carries the complete ozone gas flow and thus does not consume any ozone gas for its operation.
The oxygen mass flow meter is independent of the pressure and temperature of the oxygen. Displayed is the oxygen flow in Nl/min, one Nl/min equaling 85.7 g/h.
The ozone-resistant pressure gauge behind the outlet needle valve shows the ozone system counter pressure, the pressure into which the ozone gas is flowing.

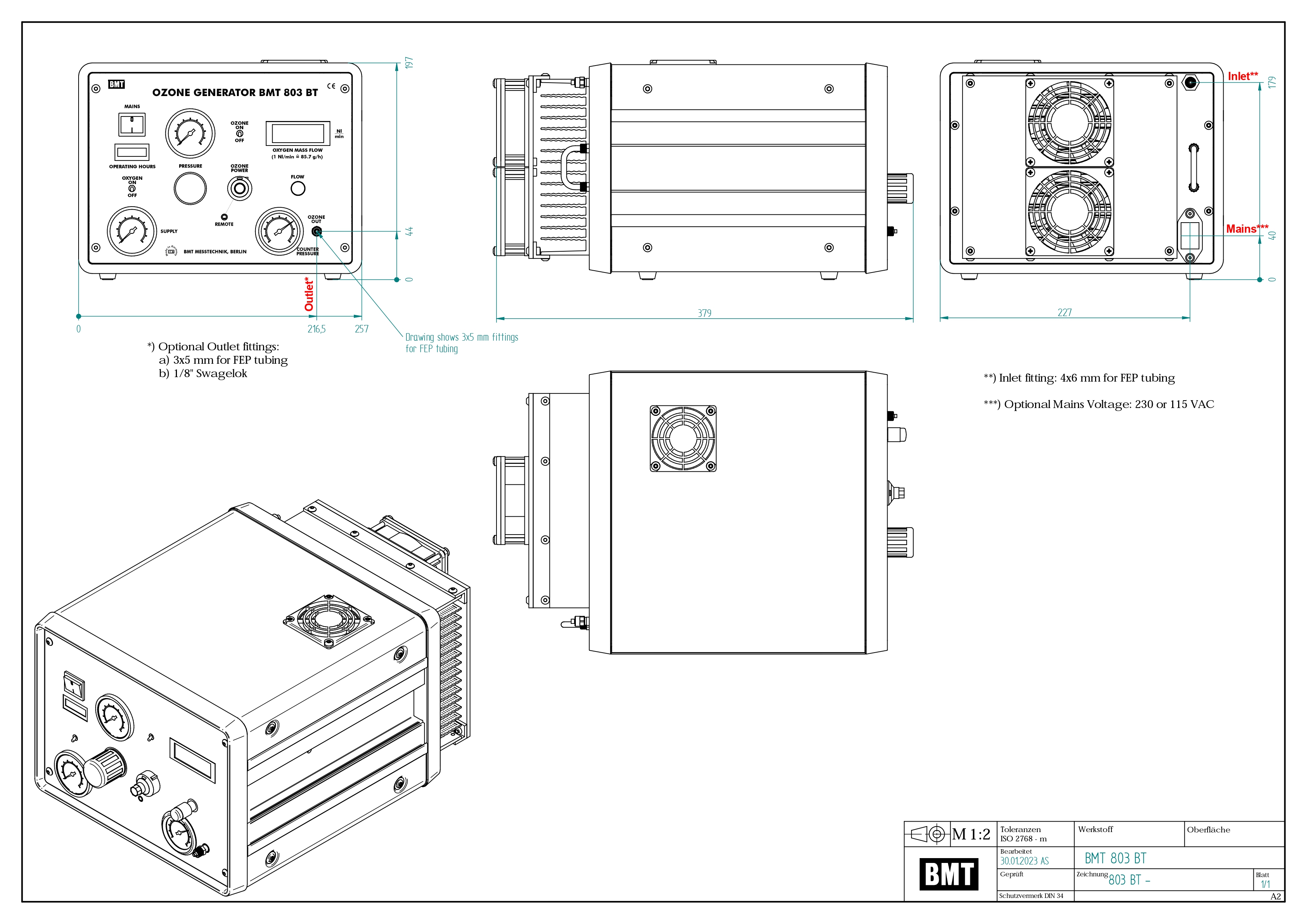

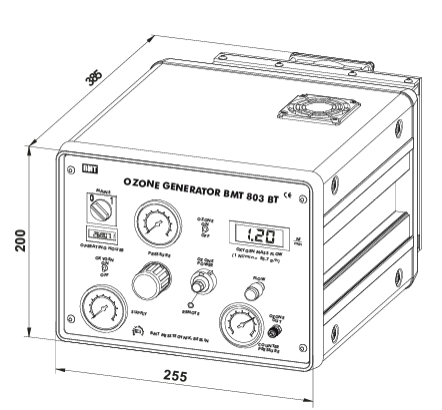

Dimensions of the OZONE GENERATOR BMT 803 BT are 255 x 200 x 385 mm (10” x 8” x 15”). The weight is 10 kg. Input voltage is 230 VAC, or 115 VAC. The oxygen inlet fitting (on the rear) is for 4 x 6 mm (or 1/4" x 5/32") PTFE tubing. The ozone gas outlet fitting (on the front panel) is for 3 x 5 mm (or 1/8” x 3/16”) PTFE tubing. Power consumption is 170 W max.

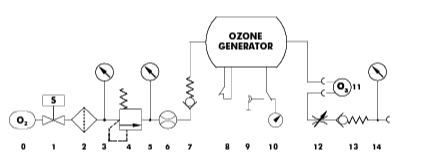

The following piping and instrumentation diagram illustrates the functioning of the ozone source:
0 oxygen source (4 bar max.) 8 ozone off
1 solenoid valve: O2 on/off 9 remote control input
2 particle filter 10 internal power control
3 oxygen supply pressure 11 external BMT 964 (optional)
4 pressure regulator (self relieving) 12 needle valve
5 operating pressure 13 check valve
6 thermal mass flow meter 14 counter pressure
7 check valve
- Ozone generation in the laboratory
- Pilot plants for ozone processes
- High concentration ozone experiments
- More than 8 g/h of ozone @ 100 g/Nm3
- Ozone content up to 250 g/Nm3
- Complete control environment built in, including: two check valves, thermal mass flow meter, two particle filters, three pressure gauges, power control selectable: manual or remote
- WxHxD only 255x200x385 mm (10”x8”x15”), 10 kg
- Life expectancy of many years
feed gas oxygen cooling ambient air
oxygen flow rate 0.1 to 4 Nl/min
flow measurement mass flow meter 0 to 2 Nl/min
optional: 0 to 5 Nl/min ozone production > 8 g/h @ 100 g/Nm3
max. O3 concentration > 250 g/Nm3
adjustment range 15 to 100% ozone output
at 0 to 100% control input max. feed gas pressure 4 barg
max. ozone gas pressure 1 barg
life expectancy of fans 40,000 hours ambient temperature 0 to 30°C
temperature effect output decreasing by approx. 0.8% / K
gas ports oxygen inlet: for 4x6mm PTFE tubing ozone outlet: for 3x5mm (1/8"x3/16") PTFE two in-line ports for optional ozone analyser
power 230 or 115 VAC, 170 W, 50/60 Hz
dimensions (WxHxD) 255 x 200 x 385 mm (10" x 8" x 15")
weight 10 kg
