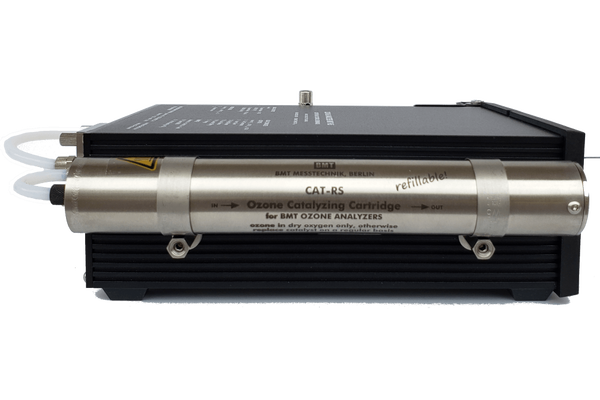

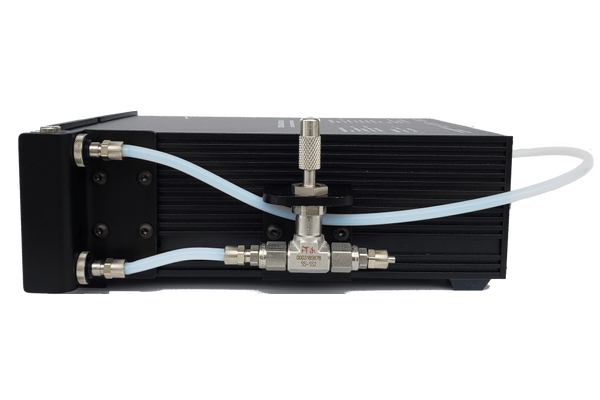

The BMT 965 BT has a throttle valve with flow meter attached on the right (sample gas inlet), and a Catalyzing Cartridge (catalytic ozone destruct) on the left to remove the ozone from the sample gas before it is vented to the ambient. The sample gas enters the throttle valve through a fitting for 3 x 5 mm (1/8‘‘ x 3/16‘‘) PTFE tubing, and then enters the BMT 965 BT through a replaceable porous PTFE sample gas filter. Upon exiting the BMT 965 BT, the sample gas passes through the Catalyzing Cartridge where the ozone is destroyed.
An eight gigabyte non-volatile log memory is included, providing virtually unlimited storage capacity for concentration and error logs. If connected to a PC, the instrument acts as an external USB drive, from which concentration and error logs can be downloaded. Logs can also be copied and firmware can be upgraded without an external computer just by connecting a USB flash drive.
Complete control of all operating parameters is provided with the Windows software BMT 965 Link.
As an option the BMT 965 BT can be ordered with an Internal Purge Unit (IPU) for fully automatic purging and zeroing the analyser. Another option is a soft carrying bag.
Click For Detail View

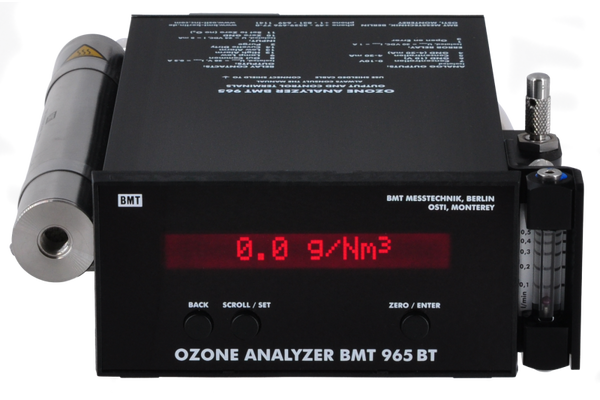

The OZONE ANALYZER BMT 965 BT is a portable instrument.

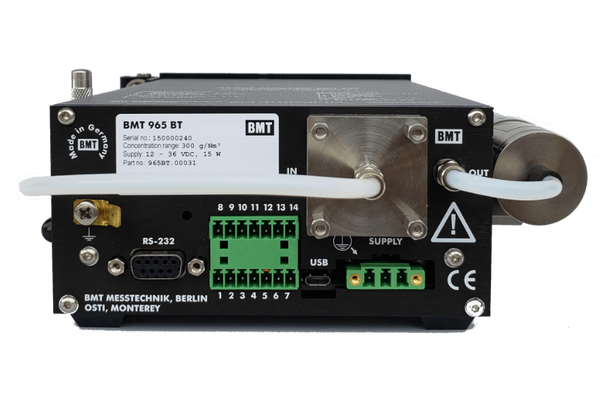

Fittings for the inlet and outlet tubing (connected to the Catalyzing Cartridge), and the connectors for the signals, and isolated RS-232 interface, are accessible from the rear. The total depth thus is about 250 mm.
As an option the OZONE ANALYZER BMT 965 BT may be ordered equipped with an Internal Purge Unit (IPU), which consists of a built-in 3-way solenoid valve plus air pump with particle filter, for fully automatic purging and zeroing the instrument. This option makes sure that the cuvette is flushed with ambient filtered air (zero gas) upon activating the AUTO ZERO function.
For applications in the field we recommend the soft carrying bag which has room enough for the BMT 965 BT and accessories.
Additional BMT Products (for details, refer to the appropriate data sheets):
BMT 965 C (Cabinet) for truly automatic stand-alone applications in a rough service environment
BMT 965 AQ and BMT 965 AQ-INLINE for ozone measurement in DI (de-ionized) water
BMT 965 AQ/HF for ozone measurement in DI water with HF
OZONE-IN-OFF-GAS System
BMT 932 Ozone Monitor for TLV monitoring in ambient air (1, 3 & 6 channels)
Ozone generators BMT 802X and BMT 803 for small scale ozone production from oxygen 4 to 8 g/h
- Ozone measurement on the bench
- Ozone measurement in the laboratory
- Ozone measurement in the field
- Experiments with ozone
- Waste water treatment
- Industrial ozone processes
- Dual beam UV photometer
- Long-life mercury lamp
- Warranty 3 years, 5 years on the UV lamp
- High accuracy, error less than 0.5%
- Pressure and temperature compensated
- Ranges from 2 to 600 g/Nm3
- Built-in sample gas filter
- Internal Purge Unit (IPU) as an option
- Relay contact for control of external zeroing valve
- Failure warnings include: lamp low,
cuvette dirty, overrange, summary error - Key functions programmable via the front panel, or a Windows PC
- Display in g/Nm3, %wt/wt, or ppmv
- High and low limit alarms
- Timing sequence for automatic zeroing
- Pressure readout in bar, psi, Torr or MPa
- 4-20 mA and 0-10 V isolated outputs
- 8 GB non-volatile log memory (binary and Excel CSV)
- USB On-The-Go, Firmware upgrades in the field
- RS-232 interface (bidirectional, isolated)
| measurement principle | dual-beam UV photometer (254 nm) | |
| MTBF | instrument incl. UV lamp 65,000 h, | |
| excl. UV lamp 120,000 h | ||
| UV lamp | low pressure mercury lamp, long life design, burnt-in | |
| for 300 h | ||
| display | 16 character alphanumeric backlit LCD | |
| concentration ranges | 50, 100, 200, 300, 400, 500, 600 g/Nm3, | |
| selectable units g/Nm3, %wt/wt and ppmv | ||
| optional ranges | 2, 5, 10, 20 g/Nm3, | |
| selectable units g/Nm3, %wt/wt and ppmv | ||
| accuracy | after zeroing the max. error is the sum: | |
| repeatability error | 0.4% of measurement + 0.1% of scale | |
| response time | 0.2 % of measurement | |
| zero drift | 0.1 s (analog output), 0.3 s (display) | |
| typ. 0.2% of range per day, | ||
| after warm-up, non-cumulative | ||
| max. inlet pressure | 2.5 bar g | |
| max. outlet pressure | 1.15 bar abs | |
| ambient temperature | 0 - 50 °C (non-condensing) | |
| materials in contact | quartz (cuvette windows), stainless steel (cuvette, | |
| with ozone | fittings), FFPM (window seals), FEP (tubing) | |
| gas port | for PTFE tubing 3x5 mm (1/8“ x 3/16“), opt. 4x6 mm | |
| PTFE or 1/8“ Swagelok | ||
| Built-in sample gas filter is standard | ||
| recommended flow rate | 0.1 to 1 l/min typical | |
| temperature compens. | is standard | |
| pressure compensation | with built-in cuvette pressure transducer, | |
| units selectable: bar, psi, Torr, MPa | ||
| signal outputs | concentration 4 - 20 mA (isolated, active) | |
| concentration 0 - 10 V (isolated) | ||
| concentration alarms | High Alarm, Low Alarm, latching, not latching | |
| control input | set to zero (24 V, 8 mA, isolated) | |
| control outputs | relay contacts, 28 V, 0.5 A, isolated: | |
| Lamp Low Warning | ||
| Cuvette Dirty Warning | ||
| High Alarm | ||
| Low Alarm | ||
| Purge Control | ||
| error handling | Error Relay: 30 V, 0.5 A, | |
| summarizing instrument failures, | ||
| Lamp Low Error, Lamp Off Error, Cuvette Dirty Error, | ||
| Overrange, Overpressure | ||
| early warnings | Lamp Low Warning, | |
| Cuvette Dirty Warning | ||
| Memory | 8 GB for error and concentration logs | |
| USB | On-The-Go, Device/Host mode, Full speed | |
| serial interface | RS-232, bidirectional, isolated, 2400 - 38400 Baud | |
| automatic zeroing | with optional Internal Purge Unit (IPU) | |
| Software | BMT 965 Link, instrument configuration and readout | |
| of Concentration, Event and Error Logs on a | ||
| Windows PC | ||
| power | wide range input: 100 - 240 VAC, 15 VA | |
| via wall-mount power supply 24 VDC | ||

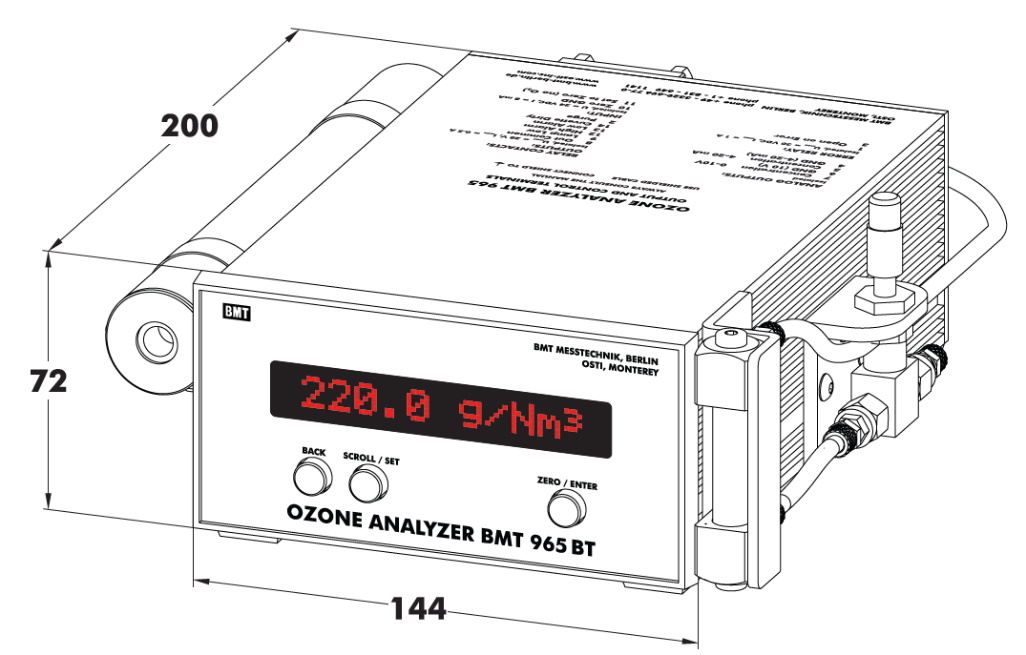

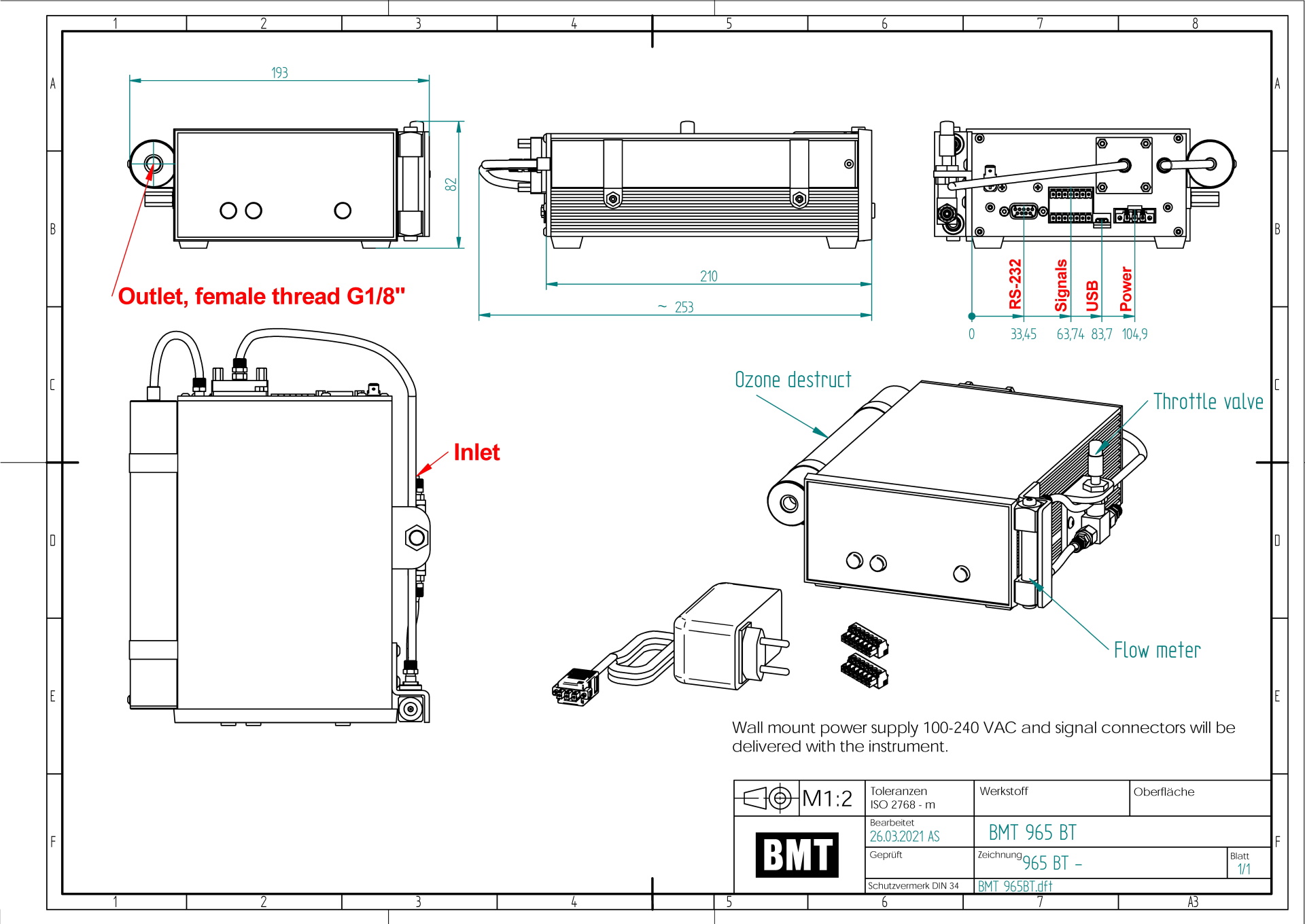

| dimensions (W x H x D) | 144 x 72 x 230 mm, DIN IEC 61554 | |
| panel cut-out (W x H) | 139 x 67 mm | |
| weight | 2.1 kg |
