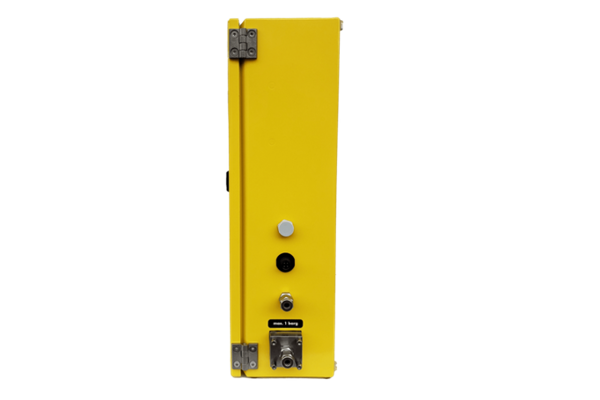

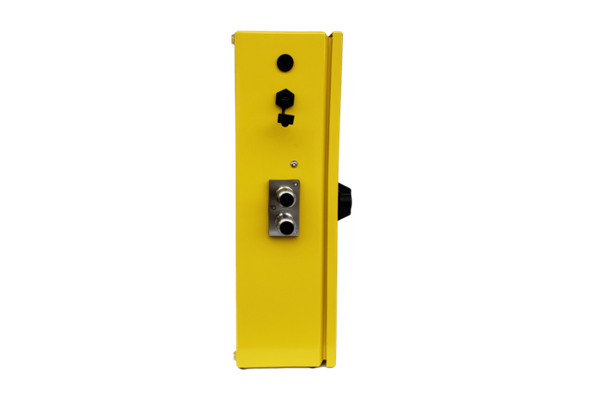

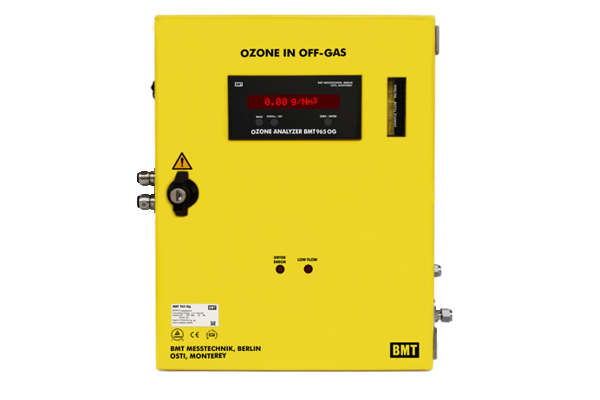

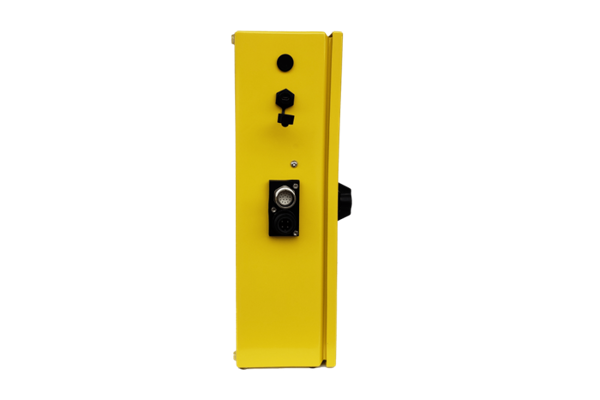

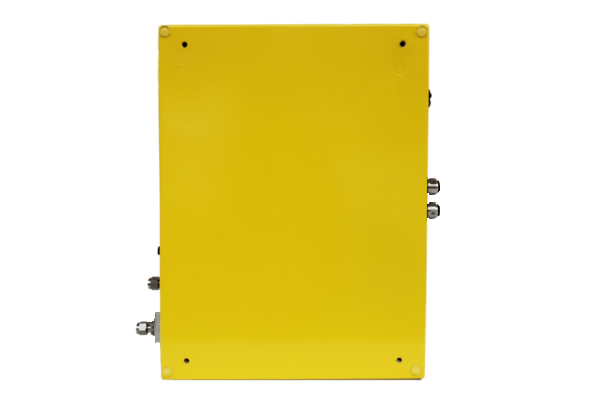

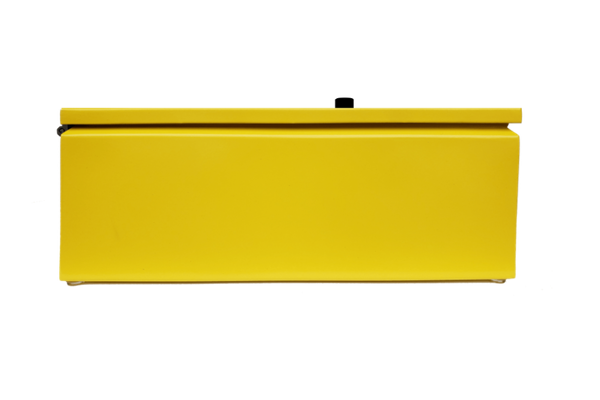

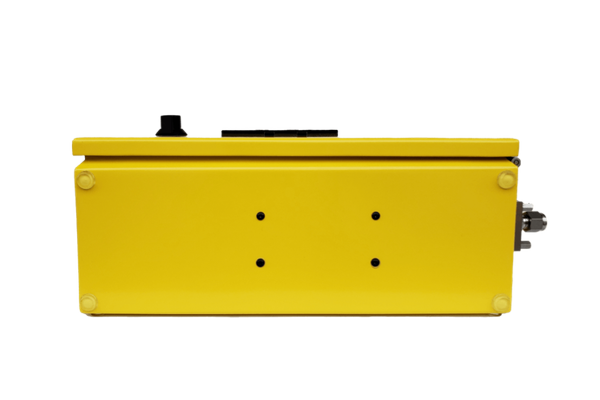

The OZONE-IN-OFF-GAS ANALYZER BMT 965OG is part of an ozone analysing system for moist ozone off-gas, typically consisting of the three major components:
• UV-photometric ozone analyser (inside BMT 965 OG)
• Peltier-electric sample gas dryer (DH6)
• ozone resistant sample gas pump (inside BMT 965 OG)
Measuring the ozone content in an ozone process off-gas is not a simple task. Not one process actually equals the other. Usually, the ozone off-gas comes from a reactor vessel at about atmospheric pressure, and has a high dew point temperature equal to, or even exceeding, the ambient temperature. An ozone-resistant sample gas pump is thus needed to bring the sample gas to the ozone analyser and, to prevent condensation in the sample tube, water vapor has to be removed from the sample to reduce dew point temperature below the lowest ambient temperature which could occur.
Using an ozone-resistant sample gas pump has an important advantage: The ozone sample gas can be directed back to the reactor after it has passed the ozone analyser. No ozone destruct is necessary.
Our ozone-resistant Sample Gas Pump SGP-5 has proved its longevity over many years. The unsurpassed simplicity of our Peltier-electric Sample Gas Dehumidifier DH6 makes it ideal for processing moist ozone off-gas prior to ozone measurement (refer to the appendix, Sample Gas Drying“).
- Ozone measurement in moist sample gas
- Municipal off-gas measurement
- Ozone measurement at atmospheric or sub-atmospheric sample pressure
- With optional DH6:
- Off-gas drying just at the sample point
- Prevents condensation in the sample line
- Peltier-electric cooling
- Condensate is removed automatically
- Sample gas pump, ozone resistant
- Low Flow warning (optional)
- Ozone catalyst can be avoided
- Measurement ranges down to 5 g/Nm3
- Long-life mercury lamp
- Warranty 3 years, 5 years on the UV lamp
- High accuracy, error less than 0.5%
- Pressure and temperature compensated
- Built-in sample gas filter
- Built-in purge unit for automatic zeroing
- Display in g/Nm3 , %wt/wt, or ppmv
- Timing sequence for automatic zeroing
- 8 GB non-volatile log memory (binary and Excel CSV)
- USB On-The-Go, Firmware upgrades in the field
- 4-20 mA and 0-10 V isolated outputs
Measurement Principle: dual-beam UV photometer (254 nm), no moving parts
MTBF: instrument incl. UV lamp 65,000 h, excl. UV lamp 120,000 h
UV Lamp: low pressure mercury lamp, long life design, burnt-in for 300 h
Display: 16 character alphanumeric backlit LCD
Concentration Ranges: 50, 100 g/Nm3, selectable units g/Nm3, %wt/wt and ppmv
Optional Ranges: 5, 10, 20 g/Nm3, selectable units g/Nm3, %wt/wt and ppmv
Accuracy: after zeroing the max. error is the sum: 0.4% of measurement + 0.1% of scale
Repeatability Error: 0.2 % of measurement
Zero Drift: typ. 0.2% of range per day, after warm-up, non-cumulative
Max Inlet Pressure: 1.15 bara (optional 1.5 or 2.0 bara, see text, please specify range)
Ambient Temperature: ozone analyser: 0 - 50 °C (non-condensing), dryer DH6: 0 - 40 °C (non-condensing)
Materials In Contact With Ozone: quartz (cuvette windows), stainless steel (cuvette, fittings), FFPM (window seals), FEP (tubing)
Inlet And Outlet Gas Ports: for 3x5 mm (1/8“ x 3/16“) tubing, opt. 4x6 mm or 1/8“ or 1/4“ or 6 mm Swagelok. Built-in sample gas filter is standard
Flow Rate: 0.5 l/min typical
Temperature Compensation: is standard
Pressure Compensation: with built-in cuvette pressure transducer, for ozone measurement at an arbitrary systemic pressure, abs. pressure range 1.15 bara (optional 1.5 or 2.0 bara, see text, please specify range)
minimum pressure 0.4 bar abs
units selectable: bar, psi, Torr, MPa
Signal Outputs: concentration 4 - 20 mA (isolated, active) concentration 0 - 10 V (isolated)
Concentration Alarms: High Alarm, Low Alarm, latching, not latching
Control Input: set to zero (24 V, 8 mA, isolated)
Control Outputs: relay contacts, 28 V, 0.5 A, isolated:
Lamp Low Warning
Cuvette Dirty Warning
High Alarm
Low Alarm
Error Handling: Error Relay: 30 V, 0.5 A,
summarizing instrument failures,
Lamp Low Error, Lamp Off Error, Cuvette Dirty Error, Overrange, Overpressure
Early Warnings: Lamp Low Warning,
Cuvette Dirty Warning
Memory: 8 GB for error and concentration logs
USB: On-The-Go, Device/Host mode, Full speed
Serial Interface (Option): RS-232, bidirectional, isolated, 2400 - 38400 Baud
Automatic Zeroing: with internal purge pump and solenoid valve
Software: BMT 965 Link, instrument configuration and readout of Concentration, Event and Error Logs on a Windows PC

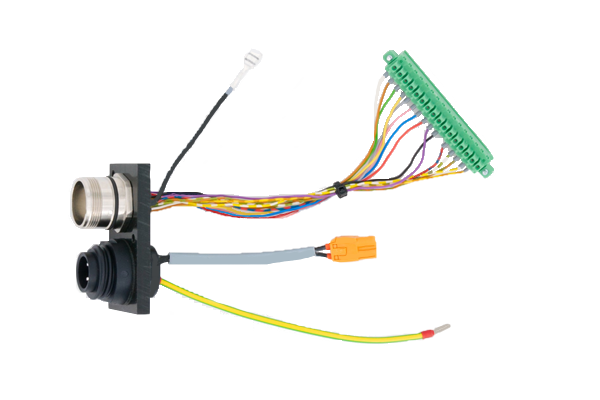

Power: wide range input: 100 - 240 VAC, 200 VA

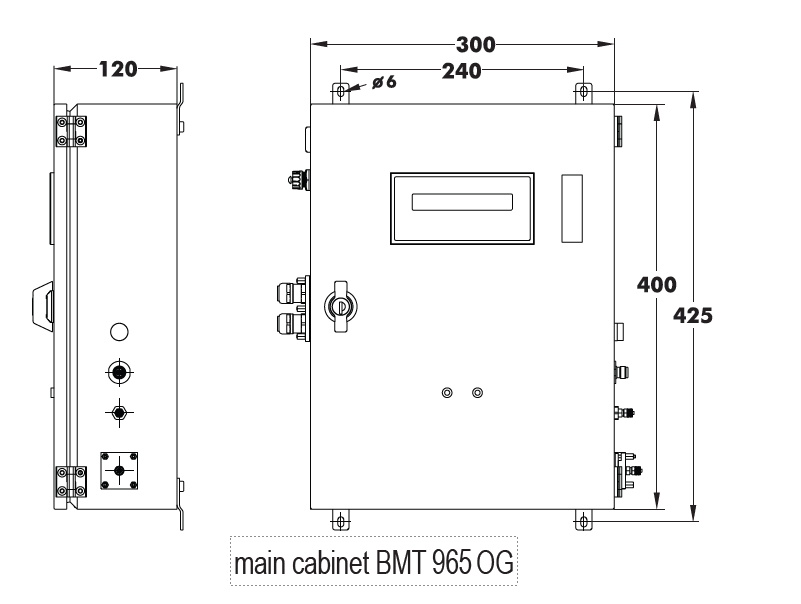

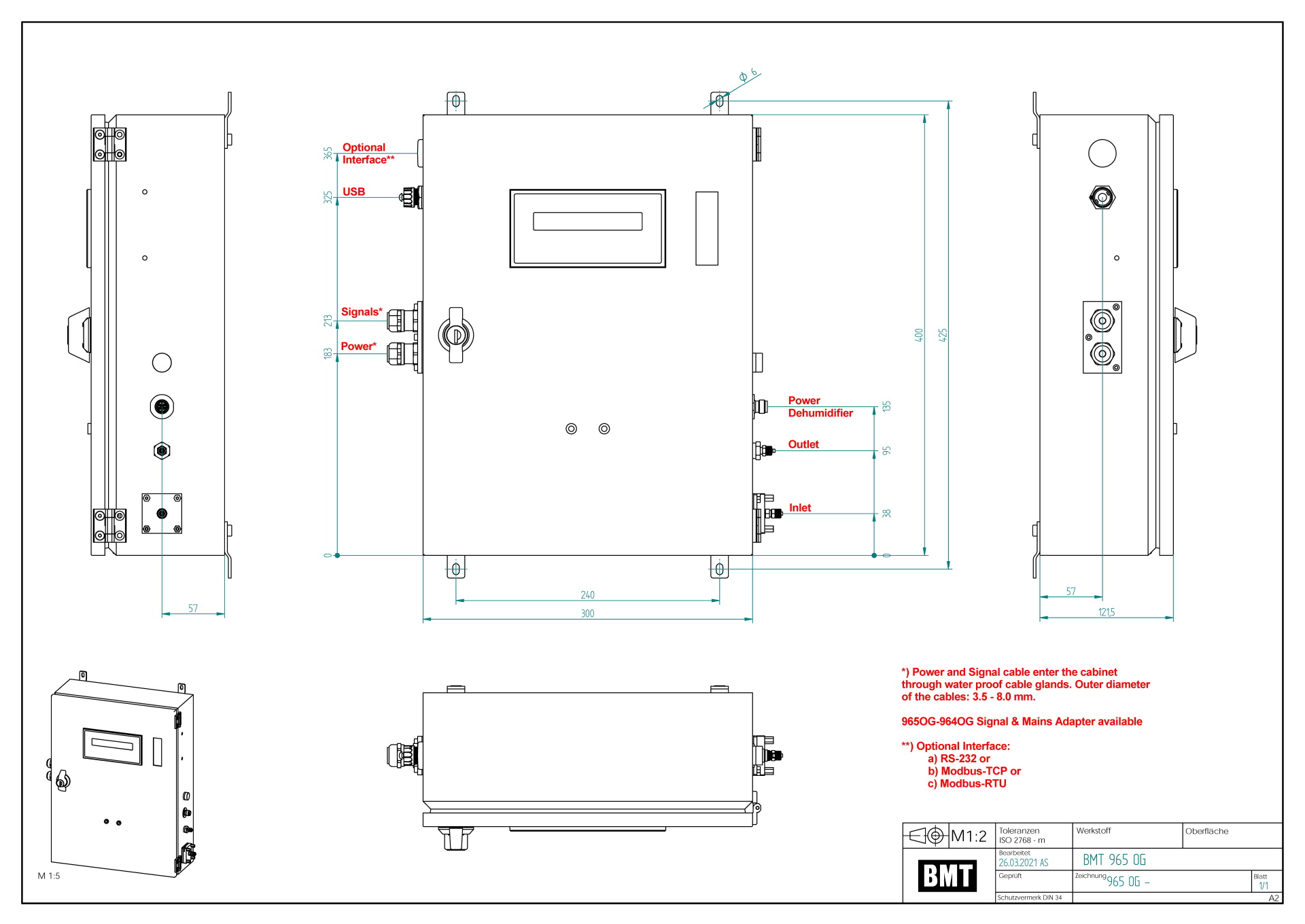

Dimensions: 400 x 300 x 120 mm
Panel Cut-Out: 139 x 67 mm
Weight: approx. 6.5 kg
Compliance: CE-marked (EMC & safety), cTUVus NRTL-listed
